Entering Data into the Catalogs

Chapter Topics
General Considerations
Recommended Order for Data Entry
Required Entries

This chapter covers a few important recommendations you should pay attention to before you begin entering data into the Catalogs in XpertMart™.  The data entry can be a lengthy process so it is worth planning ahead to avoid complications down the road. The time you spend entering data in the beginning will pay off later when you run reports and have a wealth of information to help you make better decisions. Before you begin, you should read the Catalogs topic to understand the basic layout of a catalog and the functioning of the toolbar.


General Considerations
Before you make any transaction, be sure you have opened every catalog at least once, even if you do not enter any data into the catalog. When you open a catalog for the first time,
XpertMart is in fact creating the table for that catalog in the database. Some transaction windows will not open if the proper database table does not exist. For example, if you have never opened the Transportation Catalog, the Out Slip transaction screen will not open. Similarly, if you have not opened the Vendor Terms catalog, the Receipt transaction screen will not open. Your safest bet then, is to open every catalog once, even if you don't add any records.

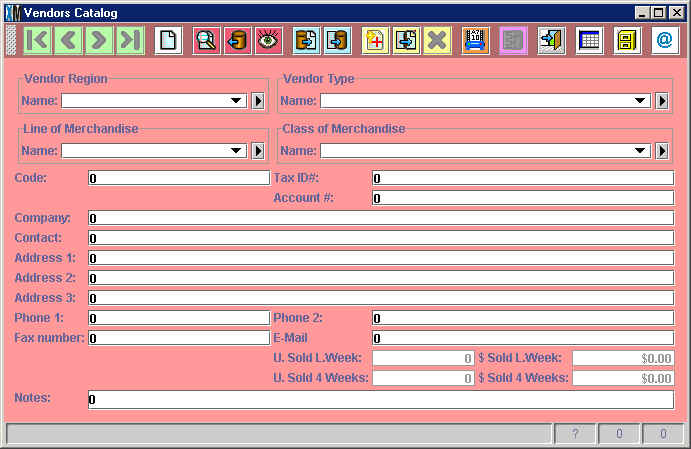

When you enter a catalog for the first time you will find zero records stored in it. You will see "0" in every field and a  "?" in the Current Records Box in the bottom right-hand corner, as shown in the image below:

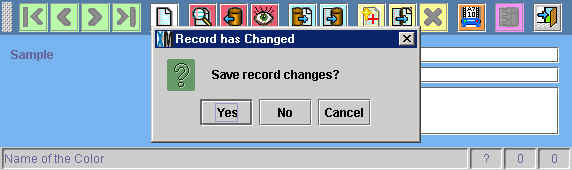

This means there are no records currently in the catalog. It is very important that you do not start entering data in the catalog before you press the New Record Button . Otherwise you run the risk of saving this information in the "zero" virtual record which could creat problems down the road. If you have accidentally started entering data, and then press the New Record Button, be sure to answer <NO> when XpertMart asks if you want to save your changes, or just close the catalog.


If you have been entering data in the "zero" record and press the Save Button you will see the following error message:


Press <OK> and then press the New Records Button to start again. You will lose the information you have entered.

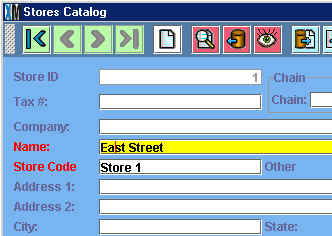

When you are entering data into a catalog, you will notice that the names of some fields appear in red. These are the fields that must be filled out for XpertMart to function properly; every other field is optional. In the image below, taken from the Stores Catalog, only the Name and Store Code field are required; every other field can be left blank. However, filling in other fields is recommended since they can enhance the kind of analysis you can do. If you do not classify the Chain a store belongs to, then you will not be able to compare the relative profitability of your chains of stores, for example. The ulitmate decision is left to the discretion of every user.

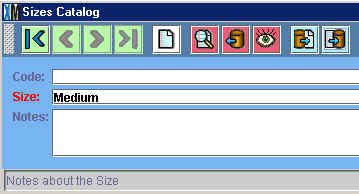

In several catalogs you will notice that there is a Code field which is an optional field in every catalog, except for the Stores Catalog (where the Store Code field is used to populate the XpertMatrix). The Code field (shown below) is there so that users of legacy systems that required the use of codes can import those codes into XpertMart. However, becuse XpertMart runs on a relational database and because there is no limit to the number of characters in any field, there really is no need to use codes in the system anymore. Therefore, the Code field can safely be ignored by the majority of users.


The image above is taken from the Sizes Catalog, which is an example of a catalog where entering a size code is really not necessary.

The information you enter into a catalog in XpertMartis case-sensitive. Keep this in mind if you are thinking of entering information using all upper-case or all lower-case.

Finally, as you enter information into catalogs, it is very important that you never erase a record in a catalog that has already been used in another catalog: for example, if you have created a certain size in the Sizes Catalog and that size has already been referenced by an item in the Items Catalog. Otherwise the integrity of the database could be compromised. If you have any doubts, contact your XpertMart Distributor for help. Similarly, if you accidently duplicate a record in a catalog, the safest thing is to rename that record rather than delete it.

Recommended Order for Data Entry
Before you begin populating your catalogs with data, defining the departments you will use as well as understanding the basic structure of the Styles Catalog is highly recommended. When you do begin to configure
XpertMart and enter data at the Main,  the following order is recommended:

Configure > File Configure
Configure > Add a Store (if necessary)
Configure > Store Configure
Configure > Configure Inventory
Catalogs > Employees (capture at least a master employee to gain access to the whole system)
Catalogs > Taxes > Tax Types, Tax Zones, Taxes
Catalogs > Stores
Catalogs > Vendors
Catalogs > Departments > Lines, Classes, Subclasses, Types and Departments
Catalogs > Items > Colors, Sizes, Second Sizes, Size Matrix, Second Size Matrix
Catalogs > Styles > Seasons, Materials, Collections, Brands, Styles
Catalogs > Clients

Later on you will need to fill in the POS and Documents Catalogs as you get ready to enter transactions. You may also want to enter data into the Vendor Regions, Vendor Terms and Vendor Types catalogs; as well as the Store Regions, Store Chains and Store Types catalogs.

Required Entries
In virtually every catalog in XpertMart you are free to enter any kind of information you want in any order you want. However, there are three catalogs in XpertMartwhere there are required entries for the system to function properly: the Document Types Catalog, the Payment Types Catalog and the Currencies Catalog. These are the required entries in the correct order:

Document Types Catalog
1) Receipts
2) Invoices
3) Adjustments
4) Counts
5) Out Slips
6) In Slips
7) Returns
8) Cost Adjustment
9) Purchase Order
10) Sale Order
11) Lost Sale
12) Out Slip Correction
13) In Slip Correction
14) Multi Store Purchase Order

Payment Types Catalog*
1) Cash
2) Credit Card
3) Check
4) Coupons
5) Foreign Currency
6) Six
7) Credit Account
8) Store Credit
9) Layaway Balance
10) Gift Certificate
11) Special Order
12) Promotions Coupon
13) Thirteen
14) Paypal

* For each of these, make sure that the "Manual Use" checkbox is checked.

Price Lists Catalog
1) List Price

Vendor Terms Catalog
1) Credit
2) COD
3) Prepay

Discount Reasons Catalog
1) Damaged
2) Employee Discount
3) Competitor Price
4) Sale
5) Tax Exempt

Credits Charges Catalog
1) Gift Certificate
2) Gift Wrapping
3) Shipping
4) Refund Gift Certificate Balance
5) Modification/Alteration
6) Tax Exempt
7) Seven
8) Eight
9) Nine
10) Credit Account Payment
11) Sale Item

Invoice Types Catalog
1) Sales Ticket
2) Fiscal Invoice
3) Three
4) Four
5) Five
6) Six
7) Seven
8) Eight
9) Nine
10) Ten
11) Eleven
12) Credit Account Payment

Adjustment Types Catalog
1) Physical Inventory Adjustment
2) Initial Inventory
3) Damaged Merchandise
4) Theft

Count Types Catalog
1) Physical Inventory

Slip Types Catalog
1) Out Slip
2) In Slip
3) Out Slip Correction
4) In Slip Correction

Sale Order Types Catalog
1) Layaways
2) Special Orders


More than likely these catalogs will already have the proper entries when you install XpertMart. However, be sure to double-check to avoid any problems down the road.
