Chapter Topics
The Invoice Header
Invoice Type
Price List
Sales Person
Items & Discounts


Credit Cards
Split Tenders

If you haven't already, be sure you read the Transactions topic before reading this chapter to learn the basics behind making a transaction. This chapter will only discuss the parts of the transaction screen that are uinque to Invoicing.

The Invoice Header
There are three fields in the Header that are unique to the Invoice: the Invoice Type field, the Price List field and the Sales Person field. Most of the time you will not need to change any of these fields and you can just skip them when ringing up an Invoice.

Invoice Type

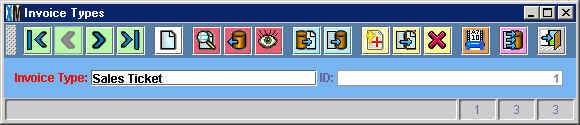

The options appearing in the Invoice Type drop-down menu are defined are defined at the Main, in the Catalogs>Documents>Invoices Types Catalog.

Generally, you will only need to have one Invoice Type, the sales ticket you issue to your customers. However, your store may be in a jurisdiction that requires you to be able to issue different types of invoices. For example, countries that use a Value-Added Tax require that you be able to issue at least two kinds of invoices: one that breaks out the tax component of the sale and one that does not. Therefore, you can assign different printing formats to these Invoice Types so that, depending on the one you select, the format (and in some cases even the printer) of the invoice changes.  (These different printing formats are written into the printer driver you are using and are activated according to the Invoice Type you select. If you need to make changes to your printer driver, contact your XpertMart Authorized Dealer for assistance).

You can also run a report that shows your sales by Invoice Type, so that you can break-down your sales by Sales Ticket vs. Fiscal Invoice, for example.

Price List

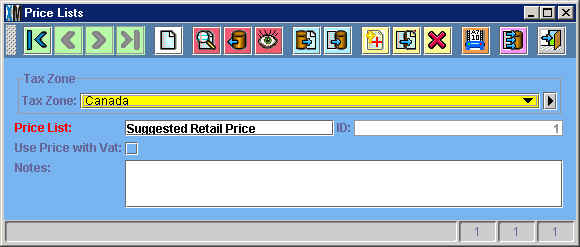

The Price List drop-down menu in the Invoice Header lets you manually switch from one price list to another. The price lists are defined at the Main in the Prices>Price List Catalog.

In most cases, XpertMart; will automatically switch from one price list to another depending on: the store you are in, the customer who is buying the merchandise or, if there has been a previously scheduled price change using the Dated Prices function. (To learn more about price lists, refer to the Prices topic). However, you always have the option to switch from one Price List to another at the Point of Sale and this is where you would do it.

Sales Person
This field is used to keep track of commissions. In this drop-down menu you will see every Employee Number in the Employee Catalog. The employee you select in this field will receive credit for the sale, i.e. this sale will be included in the commission calculation. (To learn more about how commissions work, refer to the Commissions topic).

You can configure XpertMart to require that the Sales Person be filled. You can also configure XpertMart so that takes the
employee logged in and using the system as the default entry in the Sales Person field.

If your business is a high-volume low-cost operation, you probably have little use for entering customer information in the Invoice. However, when in doubt, it is generally better to enter a customer than to leave the Customer Subform blank. Not only does entering a customer into the system at the point of sale give you the power to offer that specific customer better service, it also feeds data into the system that can be analyzed in the aggregate to better understand the demographics of your customers. This kind of information can in turn help you make better decisions about how to target your marketing budget. To learn more about this, refer to the Customers topic.

To enter an existing customer, begin typing the customer's last name into the Customer field and press <Enter>. The lookup by example menu will give you a list of matching customers. If the customer is new and is not in your Client Catalog, click on the zoom button to open the Client Catalog and capture the customer's information.

Items & Discounts
The next step is for you to enter the items that the customer is purchasing using any one of the five methods discussed in the Transactions chapter. Use the <F6> key to move to the Quantity field and enter the number of pieces the customer is buying, for each individual item.

There are two kinds of disocunts you can give. The Item Discount (reached by pressing <F7>) applies only to the specific item being discounted. The Global Discount (reached by pressing <F9>) applies to all items in the Invoice and is cumulative, i.e. it is in addition to the Item Discount.

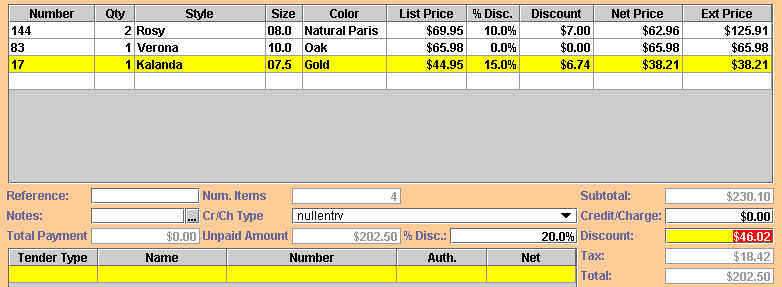

In the example below, the customer is buying 2 Rosy, Size 8.0 Natural Paris sandals. Each of these normally sells for $69.95 ( the List Price) but has a discount of 10%, which rounds up to $7.00. The 10% discount applies to each of the two Rosy sandals. The Net Price is the price of the sandals after the discount is applied, in this case, $62.96. The Extended Price is the Net Price ($62.96) multiplied by the Item Quantity (2) and in this case yields $125.91. The Verona boot does not have a discount and the Kalanda sandal has a 15% discount. The subtotal for these four pieces of merchandise is $230.10.

On top of these Item Discounts, we see that the customer is receiving a Global Discount of 20% which is equal to $46.02 in this case. The Global Discount of 20% was applied to the Subtotal of $230.10. The Total amount ($202.50) is the Subtotal ($230.10) minus the Global Discount ($46.02) plus the Tax ($18.42). The printer driver can be designed to show any and all of these values on the Invoice that is printed. (See your XpertMart Authorized Dealer for help if you need to make any changes to your current printer driver).

You can restrict the Maximum Item Discount and the Maximum Global Discount allowed and you can also require that the user select a Discount Reason from a drop-down menu defined at the Main station so that you can keep track of why discounts are being given.

Once you have entered entered a Customer, if any, and the Items that the customer is buying into the Items Area of the Invoice along with any applicable discounts, you are ready to accept payment for the merchandise. To do this, press <F10> or move the cursor to the Tender Type field and press the <Space Bar>. A menu will appear (shown below) with the different Payment Types that you can accept at the Point of Sale. The contents of this menu are defined in the POS>Payment Types Catalogue at the Main station.

When you select an option, XpertMart will automatically fill-in the total amount due (which appears in the Unpaid Amount field just above the Payment Area) in the Net field. In the example below, the total amount due is $202.50 and this is the amount that appears in the Net field once the user selects Cash as the Payment Type:

The same will happen with the other Tender Types you select, with three exceptions: checks, credit cards, layaway balances and store credits. Checks and credit cards are covered below; layaway balances are covered in the Sale Orders topic; store credits are covered in the Tracking Return Credits for Customers topic.

You can configure XpertMart in the Station Configure>POS menu so that the default Tender Type is Cash. If you select this option, then XpertMart will automatically fill Cash in the Tender Type field. Since most sales are usually paid for in cash, this speeds the payment process up considerably. When a customer wants to use a different payment method, you just need to move the cursor to the Tender Type field, press <Delete>, press the <Space Bar> to open the Tender Type menu and then select the appropriate Tender Type.

Note: if after you've entered a payment you make a change to the Invoice such as adding/deleting an Item or entering a Global Discount, XpertMart will not adjust the payment amount. You will need to delete the amount appearing in the Net field and enter the correct Total amount.

Once you've entered the correct payment, you are ready to press <F12> and print the Invoice.

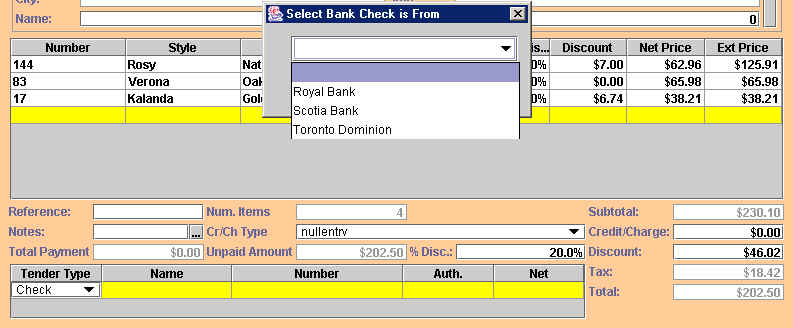

If instead of Cash you select Checks as the Payment Type, a window will appear (shown below) with a drop-down menu of Banks you can choose from. These banks are defined in the POS>Banks Catalog at the Main station.

Once you've selected a bank and pressed <OK>, the name of the bank will apear in the Name field and the Unpaid Amount will appear in the Net field:

You are free to enter the check number in the Number field or leave it blank. You can also configure XpertMart so that you are not required to select a bank when using Check as your Tender Type.

Credit Cards

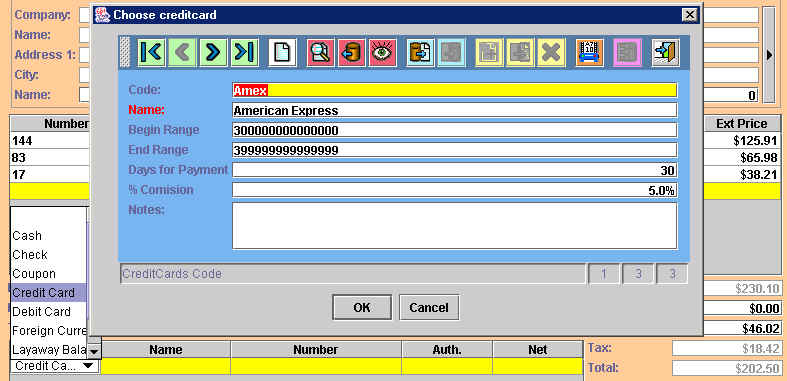

If you select Credit Card as the Tender Type, the Credit Cards Catalog will open up:

Once you've selected the credit card the customer is using and press <OK>, the credit card will appear in the Name field and the amount due will appear in the Net field, as shown below. You are then free to enter the credit card number into the Number field and the authorization code into the Authorization field.

Alternatively, you can configure XpertMart in the Station Configure>POS menu so that the system automatically detects the credit card being used when you enter the credit card number. If you select this option in the configuration, then the Credit Cards Catalog will not appear when you select Credit Cards as the Tender Type. Instead, Credit Card will appear in the Tender Type field and the amount due will appear in the Net field. When you enter a credit card number into the Number field, XpertMart will automatically fill in the credit card name in the Name field, assuming the number that you've entered is in one of the number ranges you've defined in the Credit Card Catalog.

Split Tenders

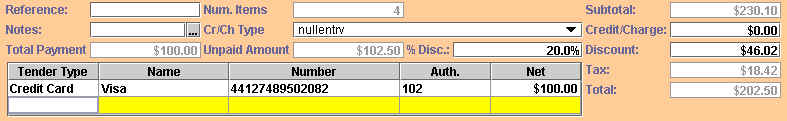

If the customer wants to use more than one payment type, it's easy to accept split tenders at the point of sale. Suppose the customer wants to pay $100 of her $202.50 balance due using a credit card. Select Credit Card as the tender type. Notice that the balance due of $202.50 appears in the Net field. Move the cursor to the Net field and delete the $202.50 and enter "$100.00" instead.


Notice that the Unpaid Amount field shows $102.50 and the Total Payment field shows $100.00. If at this point you pressed <F12> to end the transaction and print the Invoice, you would see the following error message since the payment is not complete:

You will continue to see this error message until the Unpaid Amount is equal to $0.00.

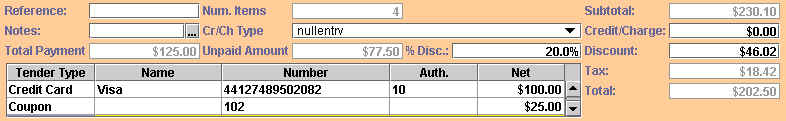

Now suppose the customer has a Coupon for $25.00 she would like to apply to this payment. In the Tender Type field you would select Coupon. Once again, XpertMart will automatically fill in the Unpaid Amount ($102.50 in this case) in the Net field. You will need to erase this amount and enter "$25.00", as shown below:

Notice that now the Total Payment field is displaying $125.00 and the Unpaid Amount field is displaying $77.50. There is no limit to the number of tender types a customer can use at the point of sale, as long as you follow these steps.

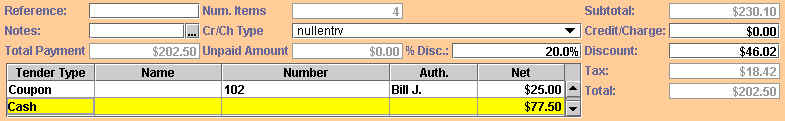

To complete the example, suppose the customer is going to pay the remaining balance of $77.50 using cash. Once again, move the cursor to the Tender Type field (you can do this using the <F10> key) and select Cash. XpertMart will automatically enter $77.50 in the Net field.


Now that the Unpaid Amount is $0.00, you are ready to press <F12> to print the Invoice and save the transaction.

Ask for Customer e-Mail

If you have configured the system to ask for customer's e-mail on all sales, then when you press <F12> the system will check to see if their is a customer selected for this sale and if that customer has an e-mail in his record. If there is not a customer specified for the sale that has an e-mail address then this window will pop up to ask for the e-mail and customer name and last name.

The cashier can ask the customer for their e-mail and type in the customer's e-mail in the field provided. Optionally the cashier could enter the customer's name and last name. The cashier can also click on the "No" button to skip adding an e-mail.

If the cashier enters and e-mail and clicks on the "Yes" button then the system proceeds to assign this e-mail to this sale. There are several different things the system may need to do to add this e-mail in the most intelligent fashion to this sale. These options are listed here:

a) If there is already a customer specified on this invoice, then the system just takes the e-mail entered here and add it to the customer's record. In this case if the cashier entered a name or last name in the fields provided for this purpose then the name and/or last name will also be either added or updated on this customer's record.

b) If there is no customer specified on this invoice, then the system does a lookup in the client catalog to see if there is a customer with the e-mail that was entered. If the system finds a client record that has this e-mail then that client is associated to this sale. Also in this case if the cashier entered a name or last name in the fields provided for this purpose then the name and/or last name will also be either added or updated on this customer's record.

c) If there is no customer specified on this invoice, and the system does not find a customer with the e-mail that was entered, then the system adds a new client record and adds the e-mail to this new customer. This new client record is associated to this sale. Once more if the cashier entered a name or last name in the fields provided for this purpose then the name and/or last name will also be either added to this new customer's record.


If the customer is paying with cash or Cash is one of several Tender Types used to pay for an invoice, when you press <F12> to end the transaction and print the Invoice, the XpertChange window will appear. The XpertChange window displays the Amount to Pay, which is equal to the Cash component of the payment. In the Amount Tendered window, enter the amount of money the customer is handing you. When you press <Enter> XpertMart will calculate the Change to Give the customer and display this amount.

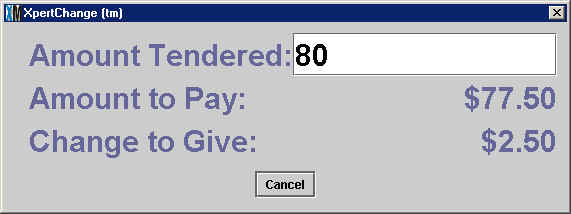

In the example below, the customer needs to pay $77.50 and hands the cashier $80.00 in cash.

When you press <Enter> a second time, the Invoice will print and the transaction will be saved in the Documents>Invoices Catalog.

If you make a mistake entering the Amount Tendered and already pressed <Enter> once, there is no way to edit the Amount Tendered. Instead, you will need to press <Cancel> and the XpertChange window will close. You will need to press <F12> again and enter the correct Amount Tendered.

If you realized that you've made a mistake entering payment information and have already pressed <Enter> twice, refer to the Editing Payments of Saved Invoices topic for help.
